EAI3576-Core-T（RK3576 核心板）产品数据全解
描述
典型应用
1.功能简介
1.1产品简介
EAI3576-Core-T是灵眸科技研发的一款应用于AIoT领域的核心板。核心板基于瑞芯微的RK3576处理器设计，集成了4个Cortex-A72和4个Cortex-A53及独立的NEON协处理器，支持4K@120fps的H.265，VP9AVS2 和 AV1解码器，4k@60fps的H.264 解码器和4K@60fps的AV1解码器；还支持4K@60fps的H.264和H.265编码器。内置3D GPU，能够完全兼容OpenGL ES1.1/2.0/3.2、OpenCL 2.0和Vulkan 1.1。引入了新一代完全基于硬件的最大 16M 像素 ISP（图像信号处理器），实现了多种算法加速器，如HDR、3A、CAC、3DNR、2DNR、锐化、去雾、增强、鱼眼校正、伽马校正等。内嵌的NPU算力高达6TOP，支持INT4/INT8/INT16/FP16混合运算。提供完整的Linux开发包供客户二次开发。

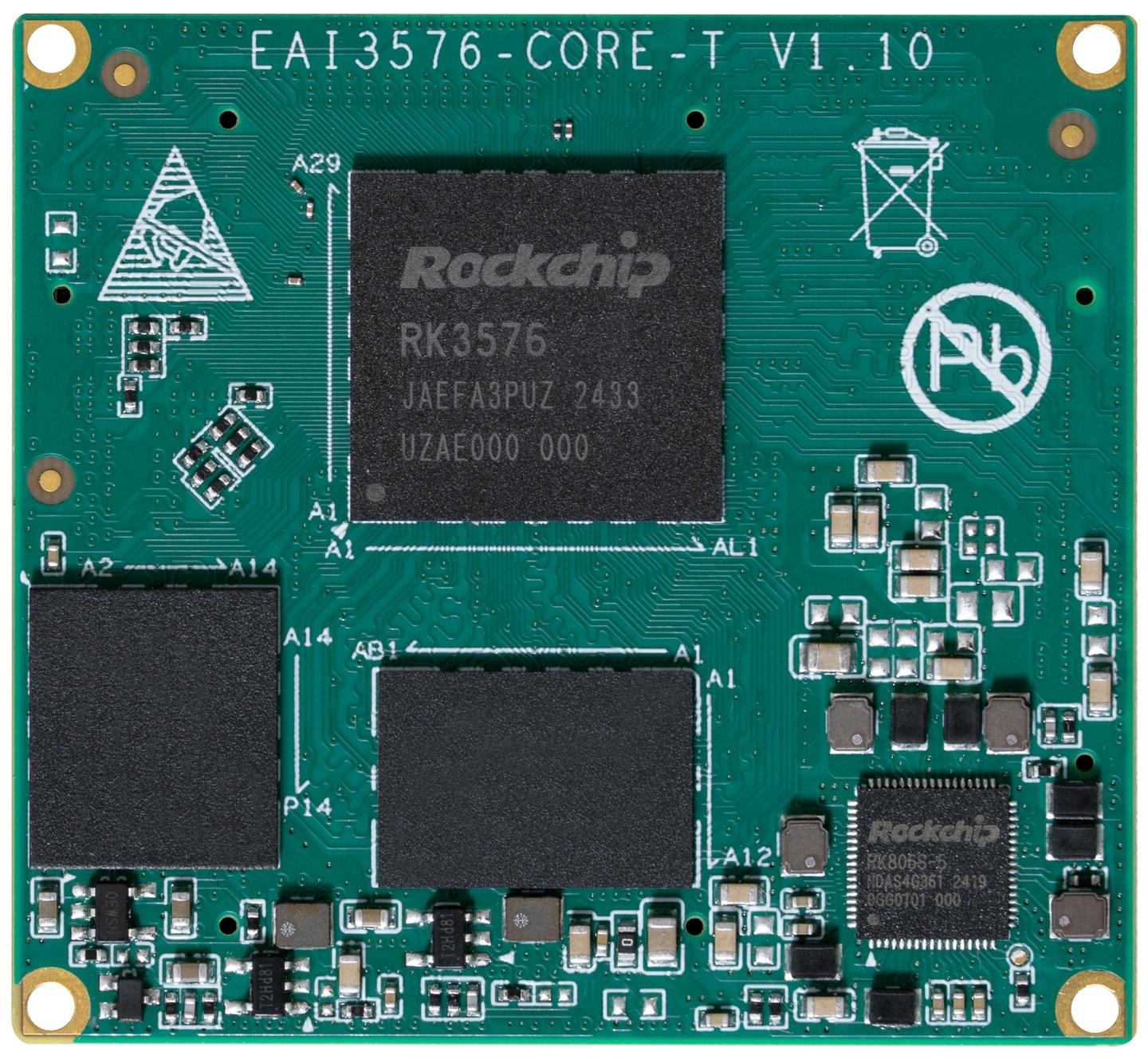

图1 EAI3576-Core-T 正面

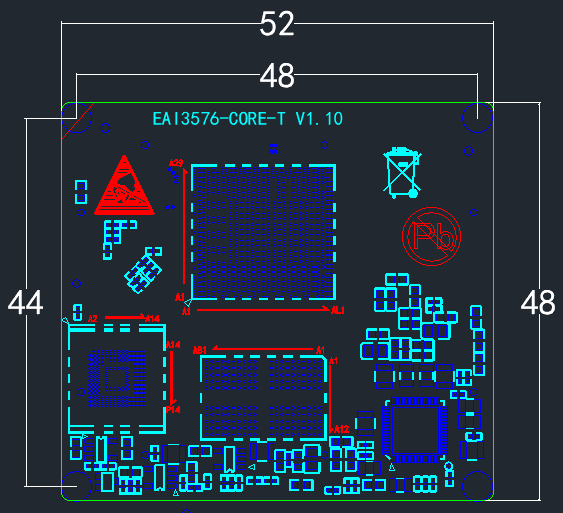

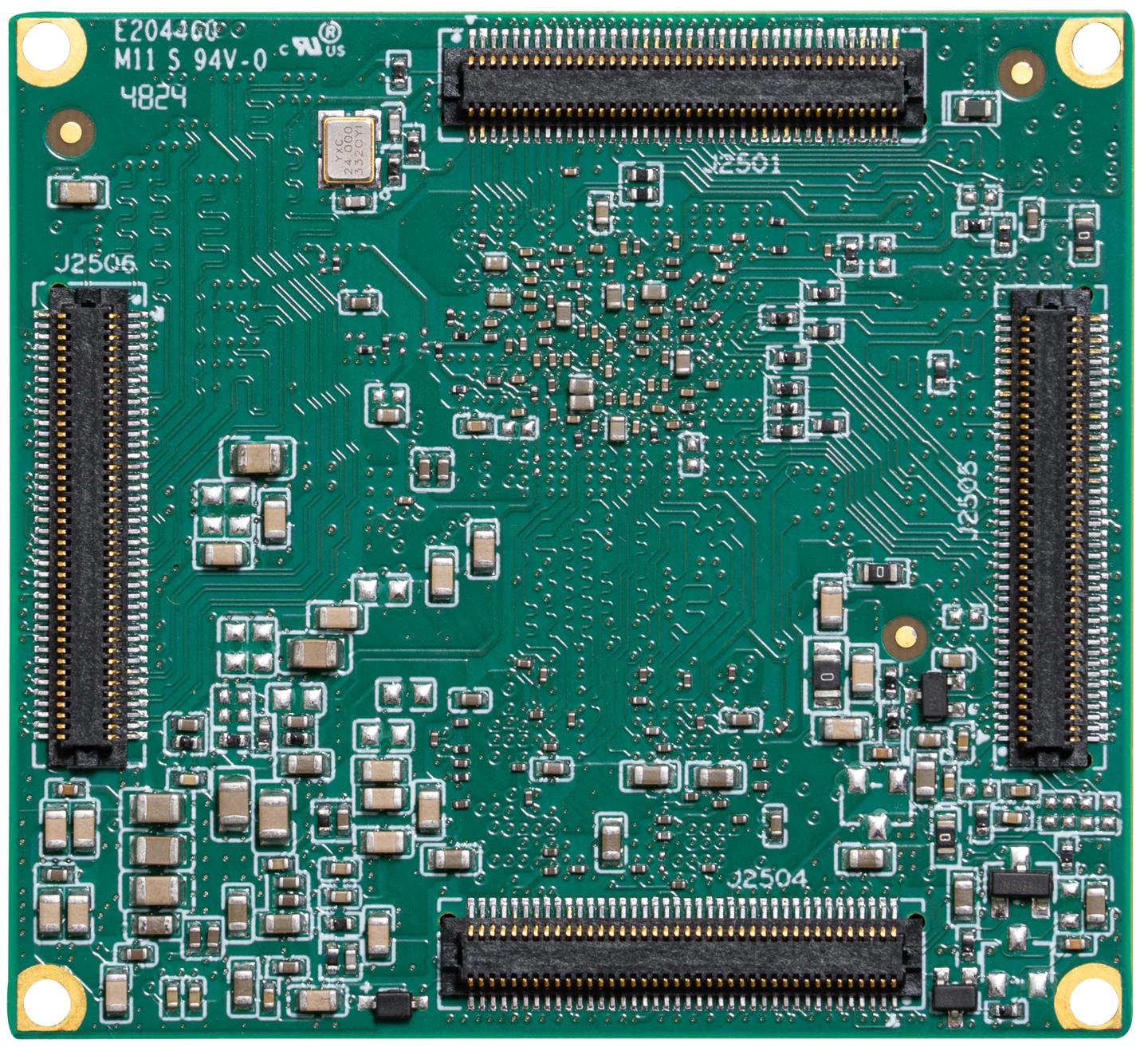

图2 EAI3576-Core-T反面
1.2 RK3576资源框图

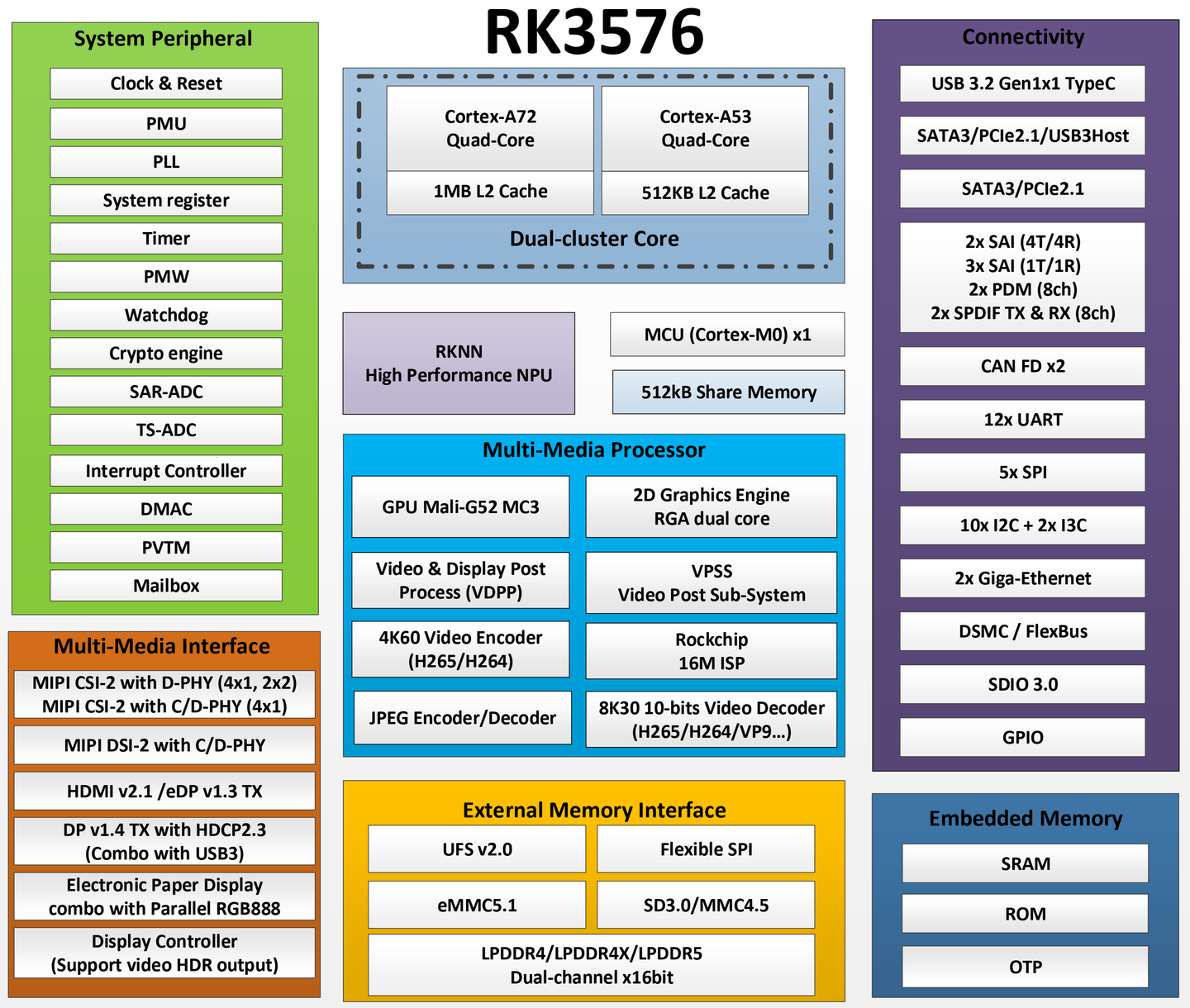

图 3 RK3576功能框图
1.3 选型对比
表1 核心板选型对比表
| 型号 | EAI3576-Core-T | EAI3576-Core-TI |
|---|---|---|
| 芯片制程 | 8nm | 8nm |
| 处理器 | RK3576 | RK3576J |
| CPU | 八核64位ARM v8处理器，4×A72@2.2GHz+4×A53@1.8GHz + ARM Cortex-M0 MCU及支持NEON指令集 | 八核64位ARM v8处理器，4×A72@2.2GHz+4×A53@1.8GHz + ARM Cortex-M0 MCU及支持NEON指令集 |
| NPU | 支持INT4/INT8/INT16/FP16/BF16/TF32混合运算，算力高达6TOPS | 支持INT4/INT8/INT16/FP16/BF16/TF32混合运算，算力高达6TOPS |
| GPU | G52 MC3 GPU@900MHz，支持OpenGL ES 3.2, 并支持2D RGA加速模块 | G52 MC3 GPU@900MHz，支持OpenGL ES 3.2, 并支持2D RGA加速模块 |
| VPU | 8K@30fps H.264/H.2652 Decoder4K@60fps H.264/H.265 Encoder | 8K@30fps H.264/H.2652 Decoder4K@60fps H.264/H.265 Encoder |
| ISP | 16M ISP with HDR (up to 120dB) | 16M ISP with HDR (up to 120dB) |
| 操作系统 | Debian12/Ubuntu 22.04 | Debain12/Ubuntu 22.04 |
| 内存 | 2/4GB LPDDR4X | 2/4GB LPDDR4X |
| 电子硬盘 | 16/32GB EMMC | 16/32GB EMMC |
| MIPI DSI接口 | 2560x1600@60Hz | 2560x1600@60Hz |
| HDMI/eDP | 1路HDMI 2.1或者eDP1.3， HDMI TX支持最大7680x4320@60Hz输出，eDP支持最大4K@60Hz输出 | 1路HDMI 2.1或者eDP1.3， HDMI TX支持最大7680x4320@60Hz输出，eDP支持最大4K@60Hz输出 |
| BT.1120 | 24bit，分辨率1920x1080@60Hz | 24bit，分辨率1920x1080@60Hz |
| MIPI CSI(DPHY/CPHY) | 2路DPHY/CPHY；MIPI DPHY V1.2，4 lanes，2.5Gbps每Lane；MIPI CPHY V1.1，3 lanes，2.5Gsps每Lane | 2路DPHY/CPHY；MIPI DPHY V1.2，4 lanes，2.5Gbps每Lane；MIPI CPHY V1.1，3 lanes，2.5Gsps每Lane |
| MIPI CSIDPHY | 1路；MIPI DPHY V1.2，4 lanes，2.5Gbps每Lane；可复用位4路2 Lanes MIPI CSI | 1路；MIPI DPHY V1.2，4 lanes，2.5Gbps每Lane；可复用位4路2 Lanes MIPI CSI |
| DVP | 1路8/10/12/16-bit标准DVP接口, 最高150MHz数据输入，支持BT.601/BT.656和BT.1120 | 1路8/10/12/16-bit标准DVP接口, 最高150MHz数据输入，支持BT.601/BT.656和BT.1120 |
| I2S | 3路 | 3路 |
| SPDIF(8ch) | 2路 | 2路 |
| PCIE 2.1 | 2路，与SATA3.0和USB3.1复用 | 2路，与SATA3.0和USB3.1复用 |
| SATA3.0 | 2路，与PCIE2.1和USB3.1复用 | 2路，与PCIE2.1和USB3.1复用 |
| USB3.0 Host | 1路，与SATA3.0和PCIE2.1复用 | 1路，与SATA3.0和PCIE2.1复用 |
| USB2.0 Host | 1路USB2.0 Host | 1路USB2.0 Host |
| USB2.0 OTG | 1路USB 2.0 OTG | 1路USB 2.0 OTG |
| USB3.0 OTG | 1路USB 3.0 OTG | 1路USB 3.0 OTG |
| SDIO 3.0 | 2路 | 2路 |
| 以太网 | 2路千兆 | 2路千兆 |
| I2C | 10路 | 10路 |
| I3C | 2路 | 2路 |
| SPI | 5路 | 5路 |
| UART | 12路（含1路调试串口） | 12路（含1路调试串口） |
| CAN | 2路CANFD 1Mbps | 2路CANFD 1Mbps |
| 供电电压 | 5V | 5V |
| 机械尺寸 | 52mm * 48mm | 52mm * 48mm |
| 对外物理接口 | 连接器80pin *4（0.5mm间距），共320个引脚 | 连接器80pin *4（0.5mm间距），共320个引脚 |
| 环境测试 | -20℃ ~ +85℃ | -40℃ ~ +85℃ |
| 评估套件 | EASY-EAI-Orin-Nano | EASY-EAI-Orin-Nano-I |
2.引脚功能
2.1 引脚信息
EAI3576-Core-T核心板将RK3576处理器引脚复用功能维持原定义、扩展或转换功能重新定义，用户可参考设计，以配合产品标准驱动的开发。为了保证产品设计具有良好的兼容性和稳定性，用户没有使用到的引脚资源务必悬空处理。接口引脚排列顺序实物图示意如图4所示。EAI3576-Core-T共有320个引脚，通过四个板对板连接器引出，连接器是80pin，0.5mm间距，3mm高度。注意: 底板母座型号是DF12NA(3.0)-80DP-0.5V(51)，需要带定位孔的连接器。

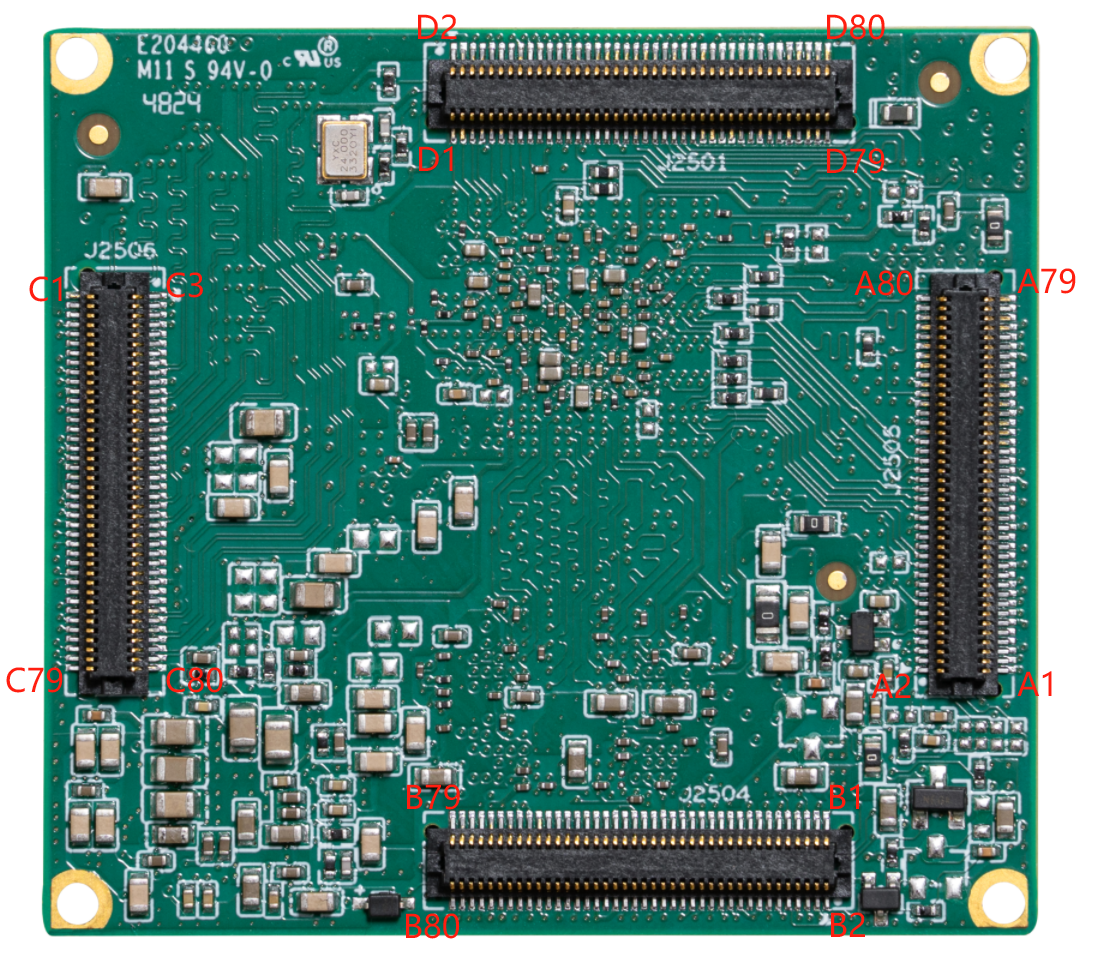

图4 引脚接口描述
2.2 模块引脚定义
EAI3576-Core-T接口引脚定义如表2，表3，表4，表5所示。核心板所有引脚功能均按下表的“默认功能”作了规定，请勿轻易修改，否则可能和出厂驱动冲突。如有疑问，请及时联系灵眸科技的技术支持。
表2 连接器A座引脚描述
| 引脚 | 标号 | 输入/输出 | 默认功能描述 | IO电平 | 可复用GPIO | 处理器引脚 |
|---|---|---|---|---|---|---|
| A1 | USB2_HOST1_P | B | USB2 OTG Port1 data Plus | -- | -- | 2T4 |
| A3 | USB2_HOST1_N | B | USB2 OTG Port1 data Minus | -- | -- | 2T5 |
| A5 | GND | -- | -- | -- | -- | |
| A7 | USB2_OTG1_VBUSDET | I | USB2 OTG1 connected vbus power detect,pull-down a 40K resistor internal (Valid voltage range:2.7-3.3V) | 3.3V | -- | 2T10 |
| A9 | USB2_OTG1_ID | I | USB2 OTG1 ID detect(Internal weak pull-up to USB2_OTG_AVDD1V8) | 1.8V | -- | 2T9 |
| A11 | GND | -- | GND | -- | -- | -- |
| A13 | USB2_OTG0_P | B | USB2 OTG Port0 data Plus | -- | -- | AK9 |
| A15 | USB2_OTG0_N | B | USB2 OTG Port0 data Minus | -- | -- | AL9 |
| A17 | GND | -- | GND | -- | -- | -- |
| A19 | USB2_OTG0_ID | I | USB2 OTG0 ID detect(Internal weak pull-up to USB2_OTG_AVDD1V8) | 1.8V | -- | 2R6 |
| A21 | GPIO3_D6 | B | GPIO | 1.8V | GPIO3_D6_d | 1C10 |
| A23 | GND | -- | GND | -- | -- | -- |
| A25 | MIPI_CSI_CAM0_PWREN_H | B | GPIO | 1.8V | GPIO3_D0_d | 1C12 |
| A27 | GPIO4_B2_d | B | GPIO | 3.3V | GPIO4_B2_d | B6 |
| A29 | GPIO4_B0_d | B | GPIO | GPIO4_B0_d | 1A5 | |
| A31 | GND | -- | GND | -- | -- | -- |
| A33 | PWM2_CH6_M0 | B | PWM controller 2 channel 6, iomux on Pin A7 | 3.3V | GPIO4_A7_d | A7 |
| A35 | MIPI_CSI_CAM0_RST_H | B | GPIO | 1.8V | GPIO3_D5_d | 1D10 |
| A37 | GPIO3_D4_d | B | GPIO | 1.8V | GPIO3_D4_d | 1E12 |
| A39 | SPI0_MISO_M0 | B | SPI0 master input,slave output, iomux on Pin AC28 | 3.3V | GPIO0_D1_d | AC28 |
| A41 | GND | -- | GND | -- | -- | -- |
| A43 | GPIO0_B0_z | B | GPIO | 1.8V | GPIO0_B0_z | 1U22 |
| A45 | GPIO0_B1_z | B | GPIO | 1.8V | GPIO0_B1_z | 1P23 |
| A47 | GPIO1_D4_d | B | GPIO | 1.8V | GPIO1_D4_d | 1E21 |
| A49 | SDMMC1_DETN_M0 | I | SDMMC1 detect input, iomux on Pin 1C23 | 1.8V | GPIO1_C3_u | 1C23 |
| A51 | GPIO1_C5_d | B | GPIO | 1.8V | GPIO1_C5_d | B28 |
| A53 | GPIO1_C2_u | B | GPIO | 1.8V | GPIO1_C2_u | B29 |
| A55 | I2C8_SCL_M1 | B | I2C8 bus clock, iomux on Pin A26 | 1.8V | GPIO1_C6_d | A26 |
| A57 | I2C8_SDA_M1 | B | I2C8 bus data/adress, iomux on Pin 1C22 | 1.8V | GPIO1_C7_d | 1C22 |
| A59 | GPIO1_C4_d | B | GPIO | 1.8V | GPIO1_C4_d | 1B23 |
| A61 | GND | -- | GND | -- | -- | -- |
| A63 | PCIE0_REFCLK_P | B | PCIe0 differential clock positive, input or output | -- | -- | 1N22 |
| A65 | PCIE0_REFCLK_N | B | PCIe0 differential clock negative,input or output | -- | -- | 1N23 |
| A67 | GND | -- | GND | -- | -- | -- |
| A69 | USB3_HOST1_SSTX_P | O | USB30 OTG Port1 transmit differential positive | -- | -- | N28 |
| A71 | USB3_HOST1_SSTX_N | O | USB30 OTG Port1 transmit differential negative | -- | -- | N29 |
| A73 | GND | -- | GND | -- | -- | -- |
| A75 | USB3_HOST1_SSRX_P | I | USB30 OTG Port1 receive differential positive | -- | -- | M28 |
| A77 | USB3_HOST1_SSRX_N | I | USB30 OTG Port1 receive differential negative | -- | -- | M29 |
| A79 | GND | -- | GND | -- | -- | -- |
| A2 | MIPI_CSI_CAM1_CLKOUT | O | Camera1 master clock output, iomux on Pin 1B12 | 1.8V | GPIO4_A0_d | 1B12 |
| A4 | GND | -- | GND | -- | -- | -- |
| A6 | MIPI_CSI_CAM0_CLKOUT | O | Camera0 master clock output, iomux on Pin 1E7 | 1.8V | GPIO3_D7_d | 1E7 |
| A8 | GND | -- | GND | -- | -- | -- |
| A10 | SAI0_MCLK_M0 | B | SAI0 master clock, iomux on Pin 1C18 | 3.3V | GPIO2_B5_d | 1C18 |
| A12 | MIPI_CSI_CAM1_PDN_H | B | GPIO | 1.8V | GPIO3_B0_d | B14 |
| A14 | GPIO4_A1_d | B | GPIO | 1.8V | GPIO4_A1_d | 1B7 |
| A16 | MIPI_CSI_CAM0_PDN_H | B | GPIO | 1.8V | GPIO3_C7_d | 1C7 |
| A18 | MIPI_CSI_CAM1_PWREN_H | B | GPIO | 1.8V | GPIO3_C5_d | 1B9 |
| A20 | USB2_OTG0_VBUSDET | I | USB2 OTG0 connected vbus power detect,pull-down a 40K resistor internal (Valid voltage range:2.7-3.3V) | 3.3V | -- | 2P3 |
| A22 | GND | -- | GND | -- | -- | -- |
| A24 | CAN0_TX_M2 | O | CAN0 transmit data, iomux on Pin 1C5 | 3.3V | GPIO4_A4_d | 1C5 |
| A26 | CAN0_RX_M2 | I | CAN0 receive data, iomux on Pin 1B5 | 3.3V | GPIO4_A6_d | 1B5 |
| A28 | GND | -- | GND | -- | -- | -- |
| A30 | I2C3_SDA_M0_AUDIO | B | I2C3 bus data/address, iomux on Pin B8 | 3.3V | GPIO4_B4_d | B8 |
| A32 | I2C3_SCL_M0_AUDIO | B | I2C3 bus clock, iomux on Pin 1A4 | 3.3V | GPIO4_B5_d | 1A4 |
| A34 | GND | -- | GND | -- | -- | -- |
| A36 | SAI1_LRCK_M0 | B | SAI1 left/right channel clock(Default for Play and Record), iomux on Pin 1B6 | 3.3V | GPIO4_A5_d | 1B6 |
| A38 | SAI1_SCLK_M0 | B | SAI1 serial clock or Bclock(Default for Play and Record), iomux on Pin 1C6 | 3.3V | GPIO4_A3_d | 1C6 |
| A40 | SAI1_MCLK_M0 | B | SAI1 master clock, iomux on Pin 1D6 | 3.3V | GPIO4_A2_d | 1D6 |
| A42 | SAI1_SDO2_M0 | O | SAI1 data 2 output, iomux on Pin B7 | 3.3V | GPIO4_B1_d | B7 |
| A44 | SAI1_SDI0_M0 | I | SAI1 data 0 input, iomux on Pin 1A6 | 3.3V | GPIO4_B3_d | 1A6 |
| A46 | GND | -- | GND | -- | -- | -- |
| A48 | SDMMC1_D0_M0 | B | SDMMC1 data 0, iomux on Pin A28 | 1.8V | GPIO1_B4_d | A28 |
| A50 | SDMMC1_D1_M0 | B | SDMMC1 data 1, iomux on Pin B27 | 1.8V | GPIO1_B5_d | B27 |
| A52 | SDMMC1_D2_M0 | B | SDMMC1 data 2, iomux on Pin 1A23 | 1.8V | GPIO1_B6_d | 1A23 |
| A54 | SDMMC1_D3_M0 | B | SDMMC1 data 3, iomux on Pin A27 | 1.8V | GPIO1_B7_d | A27 |
| A56 | SDMMC1_CMD_M0 | B | SDMMC1 command, iomux on Pin B26 | 1.8V | GPIO1_C0_d | B26 |
| A58 | GND | -- | GND | -- | -- | -- |
| A60 | SDMMC1_CLK_M0 | O | SDMMC1 clock, iomux on Pin 1B22 | 1.8V | GPIO1_C1_d | 1B22 |
| A62 | GND | -- | GND | -- | -- | -- |
| A64 | PCIE1_REFCLKP | B | PCIe1 differential clock positive, input or output | -- | -- | 1L23 |
| A66 | PCIE1_REFCLKN | B | PCIe1 differential clock negative,input or output | -- | -- | 1M23 |
| A68 | GND | -- | GND | -- | -- | -- |
| A70 | PCIE0_TX_P | O | PCIe0 transmit differential positive | -- | -- | P29 |
| A72 | PCIE0_TX_N | O | PCIe0 transmit differential negative | -- | -- | P28 |
| A74 | GND | -- | GND | -- | -- | -- |
| A76 | PCIE0_RX_P | I | PCIe0 receive differential positive | -- | -- | R28 |
| A78 | PCIE0_RX_N | I | PCIe0 receive differential negative | -- | -- | R29 |
| A80 | GND | -- | GND | -- | -- | -- |
表3 连接器B座引脚描述
| 引脚 | 标号 | 输入/输出 | 默认功能描述 | IO电平 | 可复用GPIO | 处理器引脚 |
|---|---|---|---|---|---|---|
| B1 | GMAC0_TXCLK_M0 | B | GPIO | 1.8V | GPIO3_B6_d | B11 |
| B3 | GND | -- | GND | -- | -- | -- |
| B5 | GMAC0_TXCTL_M0 | O | GMAC0 transmit controller signal, iomux on Pin A11 | 1.8V | GPIO3_B3_d | A11 |
| B7 | GMAC0_TXD0_M0 | O | GMAC0 transmit data 0, iomux on Pin 1A9 | 1.8V | GPIO3_B5_d | 1A9 |
| B9 | GMAC0_TXD3_M0 | O | GMAC0 transmit data 3, iomux on Pin B9 | 1.8V | GPIO3_C2_d | B9 |
| B11 | GMAC0_TXD1_M0 | O | GMAC0 transmit data 1, iomux on Pin B10 | 1.8V | GPIO3_B4_d | B10 |
| B13 | GMAC0_TXD2_M0 | O | GMAC0 transmit data 2, iomux on Pin 1A8 | 1.8V | GPIO3_C3_d | 1A8 |
| B15 | GND | -- | GND | -- | -- | -- |
| B17 | GMAC0_RXD3_M0 | I | GMAC0 receive data 3, iomux on Pin 1A10 | 1.8V | GPIO3_D2_d | 1A10 |
| B19 | GMAC0_RXD2_M0 | I | GMAC0 receive data 2, iomux on Pin B12 | 1.8V | GPIO3_D3_d | B12 |
| B21 | GMAC0_RXD1_M0 | I | GMAC0 receive data 1, iomux on Pin 1A11 | 1.8V | GPIO3_B1_d | 1A11 |
| B23 | GMAC0_RXD0_M0 | I | GMAC0 receive data 0, iomux on Pin A13 | 1.8V | GPIO3_B2_d | A13 |
| B25 | GMAC0_RXCTL_M0 | I | GMAC0 receive data valid/carrier sense, iomux on Pin B13 | 1.8V | GPIO3_A7_d | B13 |
| B27 | GND | -- | GND | -- | -- | -- |
| B29 | GMAC0_RXCLK_M0 | I | GMAC0 receive clock, iomux on Pin 1A12 | 1.8V | GPIO3_D1_d | 1A12 |
| B31 | GND | -- | GND | -- | -- | -- |
| B33 | SAI0_SDO2_M0 | O | SAI0 data 2 output, iomux on Pin 1B16 | 3.3V | GPIO2_B3_d | 1B16 |
| B35 | GND | -- | GND | -- | -- | -- |
| B37 | GMAC0_MDIO_M0 | B | GAMC0 management data, iomux on Pin A9 | 1.8V | GPIO3_A5_d | A9 |
| B39 | GMAC0_MDC_M0 | O | GMAC0 management data clock, iomux on Pin 1A7 | 1.8V | GPIO3_A6_d | 1A7 |
| B41 | GND | -- | GND | -- | -- | -- |
| B43 | ETH_CLK1_25M_OUT_M0 | O | CPU output clock 25MHz for Ethernet PHY1, iomux on Pin 1D18 | 3.3V | GPIO2_D6_d | 1D18 |
| B45 | GND | -- | GND | -- | -- | -- |
| B47 | GPIO3_C6_d | B | GPIO | 1.8V | GPIO3_C6_d | 1D7 |
| B49 | UART10_TX_M1 | O | UART10 transmit data, iomux on Pin C29 | 1.8V | GPIO1_D0_d | C29 |
| B51 | GPIO1_D2_d | B | GPIO | 1.8V | GPIO1_D2_d | 1A24 |
| B53 | I2C4_SDA_M3_MIPI_CAM0 | B | I2C4 bus data/adress, iomux on Pin 1D12 | 1.8V | GPIO3_B7_d | 1D12 |
| B55 | I2C4_SCL_M3_MIPI_CAM0 | B | I2C4 bus clock, iomux on Pin 1E9 | 1.8V | GPIO3_C0_d | 1E9 |
| B57 | I2C5_SDA_M3_MIPI_CAM1 | B | I2C5 bus data/adress, iomux on Pin 1B10 | 1.8V | GPIO3_C1_d | 1B10 |
| B59 | I2C5_SCL_M3_MIPI_CAM1 | B | I2C5 bus clock, iomux on Pin 1D9 | 1.8V | GPIO3_C4_d | 1D9 |
| B61 | GND | -- | GND | -- | -- | -- |
| B63 | TYPEC_DP_AUX_PUPDCTL1 | I | DP Hot Plug detection interrupt, iomux on Pin AL3 | 3.3V | GPIO4_C4_d | AL3 |
| B65 | HDMI_TX_CEC_M0 | B | HDMI TX CEC, iomux on Pin AK3 | 3.3V | GPIO4_C0_d | AK3 |
| B67 | PWM2_CH3_M1 | B | PWM controller 2 channel 3, iomux on Pin AJ1 | 3.3V | GPIO4_C7_d | AJ1 |
| B69 | HDMI_TX_ON_H | B | GPIO | 3.3V | GPIO4_C6_d | 1AE1 |
| B71 | HDMI_TX_SCL | B | HDMI TX I2C bus clock | 3.3V | GPIO4_C2_d | AL2 |
| B73 | HDMI_TX_SDA | B | HDMI TX I2C bus data/address | 3.3V | GPIO4_C3_d | 1AE2 |
| B75 | SPI3_MOSI_M0 | B | SPI3 master output,slave input, iomux on Pin 1B18 | 3.3V | GPIO3_A1_d | 1B18 |
| B77 | SPI3_CLK_M0 | B | SPI3 clock, iomux on Pin 1D16 | 3.3V | GPIO3_A0_d | 1D16 |
| B79 | SPI3_MISO_M0 | B | SPI3 master input,slave output, iomux on Pin 1A20 | 3.3V | GPIO3_A2_d | 1A20 |
| B2 | GMAC1_TXCLK_M0 | O | GMAC1 transmit clock, iomux on Pin 1C15 | 3.3V | GPIO2_C5_d | 1C15 |
| B4 | GND | -- | GND | -- | -- | -- |
| B6 | GMAC1_TXD3_M0 | O | GMAC1 transmit data 3, iomux on Pin 1A13 | 3.3V | GPIO2_C4_d | 1A13 |
| B8 | GMAC1_TXD2_M0 | O | GMAC1 transmit data 2, iomux on Pin A15 | 3.3V | GPIO2_C3_d | A15 |
| B10 | GMAC1_TXD1_M0 | O | GMAC1 transmit data 1, iomux on Pin B15 | 3.3V | GPIO2_C7_d | B15 |
| B12 | GMAC1_TXD0_M0 | O | GMAC1 transmit data 0, iomux on Pin 1A14 | 3.3V | GPIO2_C6_d | 1A14 |
| B14 | GMAC1_TXCTL_M0 | O | GMAC1 transmit controller signal, iomux on Pin B16 | 3.3V | GPIO2_D0_d | B16 |
| B16 | GND | -- | GND | -- | -- | -- |
| B18 | GMAC1_RXCLK_M0 | I | GMAC1 receive clock, iomux on Pin 1D15 | 3.3V | GPIO2_C2_d | 1D15 |
| B20 | GND | -- | GND | -- | -- | -- |
| B22 | GMAC1_RXCTL_M0 | I | GMAC1 receive data valid/carrier sense, iomux on Pin B18 | 3.3V | GPIO2_D3_d | B18 |
| B24 | GMAC1_RXD0_M0 | I | GMAC1 receive data 0, iomux on Pin 1A16 | 3.3V | GPIO2_D1_d | 1A16 |
| B26 | GMAC1_RXD1_M0 | I | GMAC1 receive data 1, iomux on Pin B17 | 3.3V | GPIO2_D2_d | B17 |
| B28 | GMAC1_RXD2_M0 | I | GMAC1 receive data 2, iomux on Pin A17 | 3.3V | GPIO2_C0_d | A17 |
| B30 | GMAC1_RXD3_M0 | I | GMAC1 receive data 3, iomux on Pin 1A15 | 3.3V | GPIO2_C1_d | 1A15 |
| B32 | GND | -- | GND | -- | -- | -- |
| B34 | SAI0_SDI0_M0 | I | SAI0 data 0 input, iomux on Pin B19 | 3.3V | GPIO2_B0_d | B19 |
| B36 | GMAC1_MDIO_M0 | B | GAMC1 management data, iomux on Pin 1B15 | 3.3V | GPIO2_D5_d | 1B15 |
| B38 | GMAC1_MDC_M0 | O | GMAC1 management data clock, iomux on Pin 1B13 | 3.3V | GPIO2_D4_d | 1B13 |
| B40 | GND | -- | GND | -- | -- | -- |
| B42 | WIFI_WAKE_HOST | B | GPIO | 3.3V | GPIO0_B0_z | 1U22 |
| B44 | UART8_TX_M1 | O | UART8 transmit data, iomux on Pin B22 | 3.3V | GPIO2_A6_d | B22 |
| B46 | GND | -- | GND | -- | -- | -- |
| B48 | ETH_CLK0_25M_OUT_M0 | O | CPU output clock 25MHz for Ethernet PHY0, iomux on Pin 1D13 | 1.8V | GPIO3_A4_d | 1D13 |
| B50 | GND | -- | GND | -- | -- | -- |
| B52 | UART10_RX_M1 | I | UART10 receive data, iomux on Pin 1D22 | 1.8V | GPIO1_D1_d | 1D22 |
| B54 | UART8_RX_M1 | I | UART8 receive data, iomux on Pin B20 | 3.3V | GPIO2_A7_d | B20 |
| B56 | GPIO1_D3_d | B | GPIO | 1.8V | GPIO1_D3_d | C28 |
| B58 | GND | -- | GND | -- | -- | -- |
| B60 | GPIO1_D5_d | B | GPIO | 1.8V | GPIO1_D5_d | 1E22 |
| B62 | SPI3_CSN0_M0 | B | SPI3 chip select 0, iomux on Pin 1A19 | 3.3V | GPIO3_A3_d | 1A19 |
| B64 | TYPEC_DP_AUX_PUPDCTL2 | B | GPIO | 3.3V | GPIO4_C5_d | AK1 |
| B66 | HDMI_TX_HPDIN_M0 | I | HDMI Hot Plug detection interrupt, iomux on Pin AK2 | 3.3V | GPIO4_C1_d | AK2 |
| B68 | GND | -- | GND | -- | -- | -- |
| B70 | DP_TX_AUX_P | B | DP AUX differential data positive | -- | -- | 2T2 |
| B72 | DP_TX_AUX_N | B | DP AUX differential data negative | -- | -- | 2T3 |
| B74 | GND | -- | GND | -- | -- | -- |
| B76 | MIPI_DPHY_CSI2_RX_CLKN | -- | MIPI DPHY CSI2 receive differential clock negative | -- | -- | 1AD22 |
| B78 | MIPI_DPHY_CSI2_RX_CLKP | I | MIPI DPHY CSI2 receive differential clock positive | -- | -- | 1AD21 |
| B80 | GND | -- | GND | -- | -- | -- |
表4 连接器C座引脚描述
| 引脚 | 标号 | 输入/输出 | 默认功能描述 | IO电平 | 可复用GPIO | 处理器引脚 |
|---|---|---|---|---|---|---|
| C1 | GND | -- | GND | -- | -- | -- |
| C3 | MIPI_CSI0_RX_D2_N | I | MIPI DPHY CSI0 receive differential data lane 2 negative | -- | -- | AL23 |
| C5 | MIPI_CSI0_RX_D2_P | I | MIPI DPHY CSI0 receive differential data lane 2 positive | -- | -- | AK23 |
| C7 | MIPI_CSI0_RX_D3_N | I | MIPI DPHY CSI0 receive differential data lane 3 negative | -- | -- | AL24 |
| C9 | MIPI_CSI0_RX_D3_P | I | MIPI DPHY CSI0 receive differential data lane 3 positive | -- | -- | AK24 |
| C11 | MIPI_CSI0_RX_D1_N | I | MIPI DPHY CSI0 receive differential data lane 1 negative | -- | -- | AL21 |
| C13 | MIPI_CSI0_RX_D1_P | I | MIPI DPHY CSI0 receive differential data lane 1 positive | -- | -- | AK21 |
| C15 | GND | -- | GND | -- | -- | -- |
| C17 | MIPI_CSI0_RX_CLK_N | I | MIPI DPHY CSI0 receive differential clock negative | -- | -- | AL22 |
| C19 | MIPI_CSI0_RX_CLK_P | I | MIPI DPHY CSI0 receive differential clock positive | -- | -- | AK22 |
| C21 | GND | -- | GND | -- | -- | -- |
| C23 | MIPI_CSI0_RX_D0_N | I | MIPI DPHY CSI0 receive differential data lane 0 negative | -- | -- | AL20 |
| C25 | MIPI_CSI0_RX_D0_P | I | MIPI DPHY CSI0 receive differential data lane 0 positive | -- | -- | AK20 |
| C27 | USB3_OTG0_SSRX2_P | I | USB3 OTG Port0 receive differential data lane 2 positive | -- | -- | AK12 |
| C29 | USB3_OTG0_SSRX2_N | I | USB3 OTG Port0 receive differential data lane 2 negative | -- | -- | AL12 |
| C31 | GND | -- | GND | -- | -- | -- |
| C33 | USB3_OTG0_SSTX2_P | O | USB3 OTG Port0 transmit differential data lane 2 positive | -- | -- | AL13 |
| C35 | USB3_OTG0_SSTX2_N | O | USB3 OTG Port0 transmit differential data lane 2 negative | -- | -- | AK13 |
| C37 | GND | -- | GND | -- | -- | -- |
| C39 | USB3_OTG0_SSRX1_P | I | USB3 OTG Port0 receive differential data lane 1 positive | -- | -- | AK10 |
| C41 | USB3_OTG0_SSRX1_N | I | USB3 OTG Port0 receive differential data lane 1 negative | -- | -- | AL10 |
| C43 | GND | -- | GND | -- | -- | -- |
| C45 | USB3_OTG0_SSTX1_P | O | USB3 OTG Port0 transmit differential data lane 1 positive | -- | -- | AL11 |
| C47 | USB3_OTG0_SSTX1_N | O | USB3 OTG Port0 transmit differential data lane 1 negative | -- | -- | AK11 |
| C49 | GND | -- | GND | -- | -- | -- |
| C51 | MIPI_DPHY_CSI3_RX_D2N | I | MIPI DPHY CSI3 receive differential data lane 2 negative | -- | -- | K29 |
| C53 | MIPI_DPHY_CSI3_RX_D2P | I | MIPI DPHY CSI3 receive differential data lane 2 positive | -- | -- | K28 |
| C55 | MIPI_DPHY_CSI3_RX_D0N | I | MIPI DPHY CSI3 receive differential data lane 0 negative | -- | -- | H29 |
| C57 | MIPI_DPHY_CSI3_RX_D0P | I | MIPI DPHY CSI3 receive differential data lane 0 positive | -- | -- | H28 |
| C59 | MIPI_DPHY_CSI3_RX_D1N | I | MIPI DPHY CSI3 receive differential data lane 1 negative | -- | -- | J29 |
| C61 | MIPI_DPHY_CSI3_RX_D1P | I | MIPI DPHY CSI3 receive differential data lane 1 positive | -- | -- | J28 |
| C63 | MIPI_DPHY_CSI3_RX_D3N | I | MIPI DPHY CSI3 receive differential data lane 3 negative | -- | -- | L29 |
| C65 | MIPI_DPHY_CSI3_RX_D3P | I | MIPI DPHY CSI3 receive differential data lane 3 positive | -- | -- | L28 |
| C67 | GND | -- | GND | -- | -- | -- |
| C69 | MIPI_DPHY_CSI3_RX_CLKN | I | MIPI DPHY CSI3 receive differential clock negative | -- | -- | 1H23 |
| C71 | MIPI_DPHY_CSI3_RX_CLKP | I | MIPI DPHY CSI3 receive differential clock positive | -- | -- | 1H22 |
| C73 | GND | -- | GND | -- | -- | -- |
| C75 | MIPI_DPHY_CSI4_RX_CLKN | I | MIPI DPHY CSI4 receive differential clock negative | -- | -- | 1K23 |
| C77 | MIPI_DPHY_CSI4_RX_CLKP | I | MIPI DPHY CSI4 receive differential clock positive | -- | -- | 1K22 |
| C79 | GND | -- | GND | -- | -- | -- |
| C2 | GND | -- | GND | -- | -- | -- |
| C4 | HDMI_TX_SBD_P | B | HDMI sideband differential data lane positive | -- | -- | 2T12 |
| C6 | HDMI_TX_SBD_N | B | HDMI sideband differential data lane Nesitive | -- | -- | 2U12 |
| C8 | GND | -- | GND | -- | -- | -- |
| C10 | HDMI_TX_D0_P | O | HDMI transmit differential data lane 0 positive | -- | -- | 1AE24 |
| C12 | HDMI_TX_D0_N | O | HDMI transmit differential data lane 0 negative | -- | -- | AK27 |
| C14 | GND | -- | GND | -- | -- | -- |
| C16 | HDMI_TX_D1_P | O | HDMI transmit differential data lane 1 positive | -- | -- | AK28 |
| C18 | HDMI_TX_D1_N | O | HDMI transmit differential data lane 1 negative | -- | -- | AL28 |
| C20 | GND | -- | GND | -- | -- | -- |
| C22 | HDMI_TX_D2_P | O | HDMI transmit differential data lane 2 positive | -- | -- | AJ28 |
| C24 | HDMI_TX_D2_N | O | HDMI transmit differential data lane 2 negative | -- | -- | AK29 |
| C26 | GND | -- | GND | -- | -- | -- |
| C28 | HDMI_TX_D3_P | O | HDMI transmit differential data lane 3 positive | -- | -- | AL26 |
| C30 | HDMI_TX_D3_N | O | HDMI transmit differential data lane 3 negative | -- | -- | AK26 |
| C32 | GND | -- | GND | -- | -- | -- |
| C34 | MIPI_DPHY_DSI_TX_CLK_N | O | MIPI DPHY transmit differential clock negative | -- | -- | AK17 |
| C36 | MIPI_DPHY_DSI_TX_CLK_P | O | MIPI DPHY transmit differential clock positive | -- | -- | AL17 |
| C38 | GND | -- | GND | -- | -- | -- |
| C40 | MIPI_DSI_TX_D0_N | O | MIPI DPHY transmit differential data lane 0 negative | -- | -- | AK15 |
| C42 | MIPI_DSI_TX_D0_P | O | MIPI DPHY transmit differential data lane 0 positive | -- | -- | AL15 |
| C44 | MIPI_DSI_TX_D1_N | O | MIPI DPHY transmit differential data lane 1 negative | -- | -- | AK16 |
| C46 | MIPI_DSI_TX_D1_P | O | MIPI DPHY transmit differential data lane 1 positive | -- | -- | AL16 |
| C48 | MIPI_DSI_TX_D2_N | O | MIPI DPHY transmit differential data lane 2 negative | -- | -- | AK18 |
| C50 | MIPI_DSI_TX_D2_P | O | MIPI DPHY transmit differential data lane 2 positive | -- | -- | AL18 |
| C52 | MIPI_DSI_TX_D3_N | O | MIPI DPHY transmit differential data lane 3 negative | -- | -- | AK19 |
| C54 | MIPI_DSI_TX_D3_P | O | MIPI DPHY transmit differential data lane 3 positive | -- | -- | AL19 |
| C56 | GND | -- | GND | -- | -- | -- |
| C58 | MIPI_CSI1_RX_CLK_N | I | MIPI DPHY CSI1 receive differential clock negative | -- | -- | 1AC23 |
| C60 | MIPI_CSI1_RX_CLK_P | I | MIPI DPHY CSI1 receive differential clock positive | -- | -- | 1AC22 |
| C62 | GND | -- | GND | -- | -- | -- |
| C64 | MIPI_CSI1_RX_D0_N | I | MIPI DPHY CSI1 receive differential data lane 0 negative | -- | -- | AE28 |
| C66 | MIPI_CSI1_RX_D0_P | I | MIPI DPHY CSI1 receive differential data lane 0 positive | -- | -- | AE29 |
| C68 | MIPI_CSI1_RX_D1_N | I | MIPI DPHY CSI1 receive differential data lane 1 negative | -- | -- | AF28 |
| C70 | MIPI_CSI1_RX_D1_P | I | MIPI DPHY CSI1 receive differential data lane 1 positive | -- | -- | AF29 |
| C72 | MIPI_CSI1_RX_D2_N | I | MIPI DPHY CSI1 receive differential data lane 2 negative | -- | -- | AG28 |
| C74 | MIPI_CSI1_RX_D2_P | I | MIPI DPHY CSI1 receive differential data lane 2 positive | -- | -- | AG29 |
| C76 | MIPI_CSI1_RX_D3_N | I | MIPI DPHY CSI1 receive differential data lane 3 negative | -- | -- | AH28 |
| C78 | MIPI_CSI1_RX_D3_P | I | MIPI DPHY CSI1 receive differential data lane 3 positive | -- | -- | AH29 |
| C80 | GND | -- | GND | -- | -- | -- |
表5 连接器D座引脚描述
| 引脚 | 标号 | 输入/输出 | 默认功能描述 | IO电平 | 可复用GPIO | 处理器引脚 |
|---|---|---|---|---|---|---|
| D1 | HP_DET | B | GPIO | 3.3V | GPIO0_C5_d | 1AA22 |
| D3 | PCIE0_PWREN_H | B | GPIO | 3.3V | GPIO0_D3_d | 1AA23 |
| D5 | SPI0_CLK_M0 | B | SPI0 clock, iomux on Pin 1Y23 | 3.3V | GPIO0_C7_d | 1Y23 |
| D7 | PCIE0_WAKEN_M0 | B | GPIO | 3.3V | GPIO0_D2_d | 1Y22 |
| D9 | SPI0_CSN0_M0 | B | SPI0 chip select 0, iomux on Pin 1Y21 | 3.3V | GPIO0_C6_d | 1Y21 |
| D11 | PWM0_CH0_M0 | B | PWM controller 0 channel 0, iomux on Pin 1W22 | 3.3V | GPIO0_C4_d | 1W22 |
| D13 | SPI0_MOSI_M0 | B | SPI0 master output,slave input, iomux on Pin 1W23 | 3.3V | GPIO0_D0_d | 1W23 |
| D15 | GPIO0_A2_d | B | GPIO | 1.8V | GPIO0_A2_d | 1U23 |
| D17 | GPIO0_A7_u | B | GPIO | 1.8V | GPIO0_A7_u | 1U21 |
| D19 | SDMMC0_PWREN_H | O | SDMMC0 power enable | 3.3V | GPIO0_B6_d | 1Y24 |
| D21 | GND | -- | GND | -- | -- | -- |
| D23 | UART0_TX_M0_DEBUG | O | UART0 transmit data, iomux on Pin 1U24 | 3.3V | GPIO0_D4_u | 1U24 |
| D25 | UART0_RX_M0_DEBUG | I | UART0 receive data, iomux on Pin AA28 | 3.3V | GPIO0_D5_u | AA28 |
| D27 | SPI3_CSN1_M0 | O | SPI3 chip select 1, iomux on Pin 1E15 | 3.3V | GPIO2_D7_d | 1E15 |
| D29 | GND | -- | GND | -- | -- | -- |
| D31 | PCIE0_PERSTN | B | GPIO | 3.3V | GPIO2_B1_d | 1A18 |
| D33 | GND | -- | GND | -- | -- | -- |
| D35 | PCIE0_CLKREQN_M0 | B | PCIe0 reference clock request, iomux on Pin 1A17 | 3.3V | GPIO2_B2_d | 1A17 |
| D37 | GND | -- | GND | -- | -- | -- |
| D39 | SDMMC0_CLK | O | SDMMC0 clock | 3.3V | GPIO2_A5_d | 1B21 |
| D41 | GND | -- | GND | -- | -- | -- |
| D43 | SDMMC0_D3 | B | SDMMC0 data 3 | 3.3V | GPIO2_A3_d | B23 |
| D45 | SDMMC0_D2 | B | SDMMC0 data 2 | 3.3V | GPIO2_A2_d | A23 |
| D47 | SDMMC0_D1 | B | SDMMC0 data 1 | 3.3V | GPIO2_A1_d | B25 |
| D49 | SDMMC0_D0 | B | SDMMC0 data 0 | 3.3V | GPIO2_A0_d | B24 |
| D51 | SDMMC0_CMD | B | SDMMC0 command | 3.3V | GPIO2_A4_d | 1A21 |
| D53 | GND | -- | GND | -- | -- | -- |
| D55 | GND | -- | GND | -- | -- | -- |
| D57 | GND | -- | GND | -- | -- | -- |
| D59 | GND | -- | GND | -- | -- | -- |
| D61 | GND | -- | GND | -- | -- | -- |
| D63 | GND | -- | GND | -- | -- | -- |
| D65 | GND | -- | GND | -- | -- | -- |
| D67 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D69 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D71 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D73 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D75 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D77 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D79 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D2 | RESET_L | I | System reset input | 1.8V | -- | W28 |
| D4 | GND | -- | GND | -- | -- | -- |
| D6 | PWRON_L | -- | PWRON_L | -- | -- | -- |
| D8 | UART4_TX_M2 | O | UART4 transmit data, iomux on Pin AD28 | 3.3V | GPIO0_B4_d | AD28 |
| D10 | GND | -- | GND | -- | -- | -- |
| D12 | UART4_RX_M2 | I | UART4 receive data, iomux on Pin AD29 | 3.3V | GPIO0_B5_d | AD29 |
| D14 | GND | -- | GND | -- | -- | -- |
| D16 | I2C2_SCL_M0 | B | I2C2 bus clock, iomux on Pin 1W24 | 3.3V | GPIO0_B7_d | 1W24 |
| D18 | I2C2_SDA_M0 | B | I2C2 bus data/adress, iomux on Pin AB29 | 3.3V | GPIO0_C0_d | AB29 |
| D20 | GND | -- | GND | -- | -- | -- |
| D22 | I2C0_SCL_M1_TP | B | I2C0 bus clock, iomux on Pin AB28 | 3.3V | GPIO0_C1_d | AB28 |
| D24 | I2C0_SDA_M1_TP | B | I2C0 bus data/adress, iomux on Pin 1V24 | 3.3V | GPIO0_C2_d | 1V24 |
| D26 | GND | -- | GND | -- | -- | -- |
| D28 | GPIO0_A5_d | B | GPIO | 1.8V | GPIO0_A5_d | Y29 |
| D30 | GPIO0_A0_d | B | GPIO | 1.8V | GPIO0_A0_d | V29 |
| D32 | SARADC_VIN4 | I | SAR ADC channel 4 input | 1.8V | -- | 1E18 |
| D34 | SARADC_VIN3_HP_HOOK | I | SAR ADC channel 3 input | 1.8V | -- | 1C19 |
| D36 | SARADC_VIN5 | I | SAR ADC channel 5 input | 1.8V | -- | 1D19 |
| D38 | SARADC_VIN6 | I | SAR ADC channel 6 input | 1.8V | -- | 1D21 |
| D40 | SARADC_VIN2_HW_ID | I | SAR ADC channel 2 input | 1.8V | -- | 1B19 |
| D42 | SPI0_CSN1_M0 | O | SPI0 chip select 1, iomux on Pin 1W21 | 3.3V | GPIO0_C3_d | 1W21 |
| D44 | SAI0_LRCK_M0 | B | SAI0 left/right channel clock(Default for Play and Record), iomux on Pin B21 | 3.3V | GPIO2_B7_d | B21 |
| D46 | GND | -- | GND | -- | -- | -- |
| D48 | SARADC_VIN0_BOOT | I | SAR ADC channel 0 input,with BOOT | 1.8V | -- | A25 |
| D50 | SARADC_VIN7 | I | SAR ADC channel 7 input | 1.8V | 1E19 | |
| D52 | SARADC_VIN1_RECOVERY | I | SAR ADC channel 1 input,with Recovery | 1.8V | -- | 1A22 |
| D54 | GND | -- | GND | -- | -- | -- |
| D56 | SAI0_SCLK_M0 | B | SAI0 serial clock or Bclock(Default for Play and Record), iomux on Pin A21 | 3.3V | GPIO2_B6_d | A21 |
| D58 | GND | -- | GND | -- | -- | -- |
| D60 | GND | -- | GND | -- | -- | -- |
| D62 | GND | -- | GND | -- | -- | -- |
| D64 | GND | -- | GND | -- | -- | -- |
| D66 | GND | -- | GND | -- | -- | -- |
| D68 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D70 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D72 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D74 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D76 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D78 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
| D80 | VCC5V0_SYS_S5 | I | 5V power supply | -- | -- | -- |
3.电气参数
3.1功耗参数
表6 核心板功耗参数
| 工作条件 | 电源电压 | 电源电流 | 总功耗 | 单位 |
|---|---|---|---|---|
| Linux正常启动 | 5.0V | 0.145A | 0.725W | V/A/W |
| 进入freeze休眠模式 | 5.0V | 0.122A | 0.61W | V/A/W |
| 进入mem休眠模式 | 5.0V | 0.003A | 0.015W | V/A/W |
| CPU占用100%+内存占用20% | 5.0V | 0.862A | 4.31W | V/A/W |
| CPU占用100%+内存占用50% | 5.0V | 0.899A | 4.495W | V/A/W |
| CPU占用100%+内存占用80%+最大算力NPU满载运行 | 5.0V | 1.012A | 5.06W | V/A/W |
3.2 IO电平参数
表7 IO电平（3.3V）
| 参数 | 标号 | 规格 | 说明 | |||
|---|---|---|---|---|---|---|
| 最小 | 典型 | 最大 | 单位 | |||
| 高电平输入电压 | VIH | 2.3 | 3.3 | 3.6 | V | -- |
| 低电平输入电压 | VIL | -0.3 | 0 | 1.0 | V | -- |
| 高电平输出电压 | VOH | 2.64 | 3.3 | -- | V | -- |
| 低电平输出电压 | VOL | -- | 0 | 0.66 | V | -- |
表8 IO电平（1.8V）
| 参数 | 标号 | 规格 | 说明 | |||
|---|---|---|---|---|---|---|
| 最小 | 典型 | 最大 | 单位 | |||
| 高电平输入电压 | VIH | 1.26 | 1.8 | 2.2 | V | -- |
| 低电平输入电压 | VIL | -0.3 | 0 | 0.63 | V | -- |
| 高电平输出电压 | VOH | 1.4 | 1.8 | -- | V | -- |
| 低电平输出电压 | VOL | -- | 0 | 0.4 | V | -- |
4.机械尺寸
表9 核心板机械尺寸
| 参数 | 规格 | 说明 |
|---|---|---|
| 长 | 52mm | -- |
| 宽 | 48mm | -- |

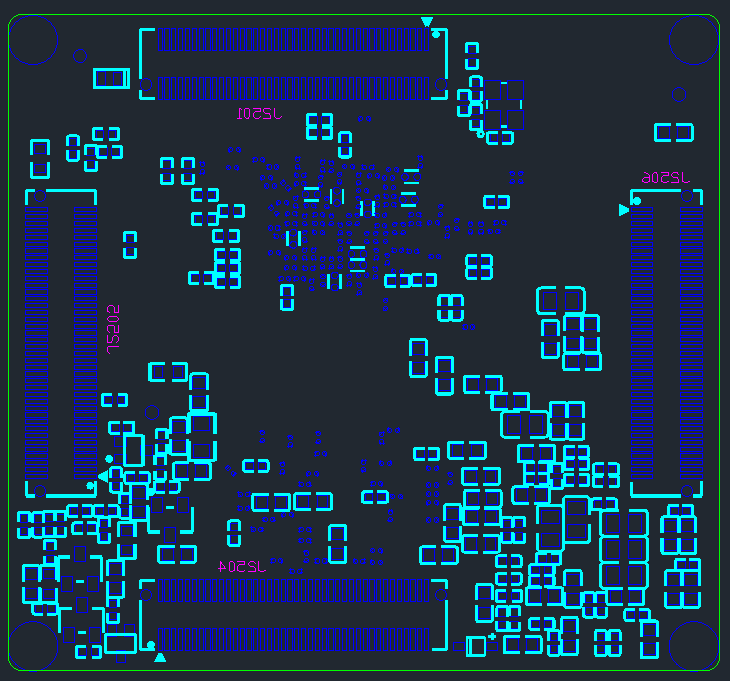

图5 核心板尺寸图-TOP
图6 核心板尺寸图-BOTTOM
5.生产指导
5.1 拆卸注意事项
- 由于核心板BGA元器件比较多，不建议经常插拔。在需要插拔的时候，务必要小心，避免PCB变形造成元件虚焊。
- 由于核心板采用板对板连接器形式接口，将有更好的信号质量，但其使用寿命有限，不建议经常插拔。连接器插拔使用寿命为50次。
- 核心板不可带电插拔，以免造成运行中的DDR、eMMC数据丢失或损坏器件。
- 拆卸时，不能使用尖利的工具拆卸核心板。
5.2 贴片注意事项

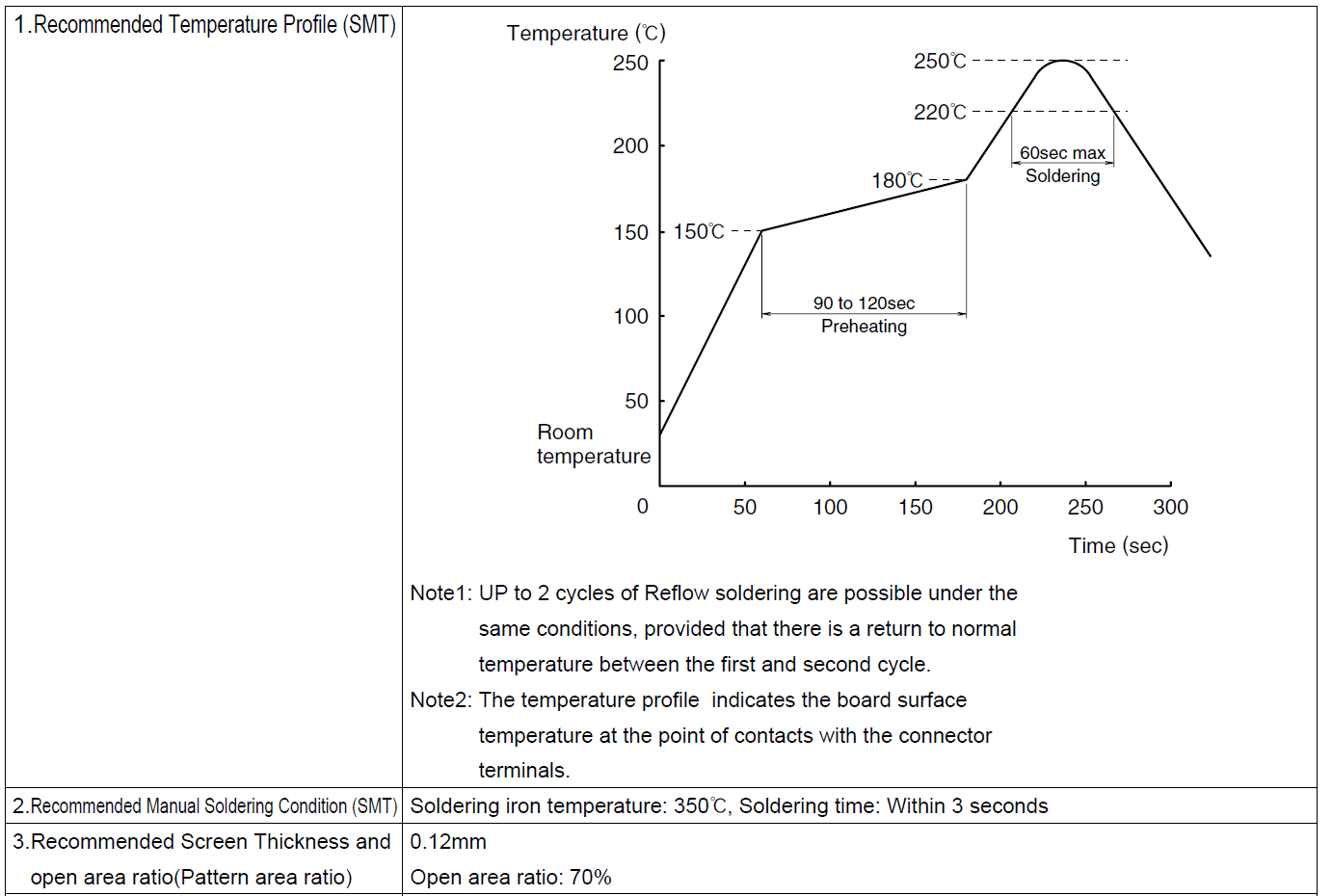

核心板的底板板对板连接器生产贴片要满足一定要求，连接器才会良好焊接，推荐钢网厚度0.12mm，开口面积比70%，回流焊或者烙铁焊接都要满足一定的温度条件，具体如图7所示。
图7 连接器焊接和钢网要求图
6. 免责声明
广州灵眸科技有限公司本着为用户提供更好服务的原则，广州灵眸科技有限公司（下称“灵眸科技”）在本手册中将尽可能地为用户呈现详实、准确的产品信息。但介于本手册的内容具有一定的时效性，灵眸科技不能完全保证该文档在任何时段的时效性与适用性。灵眸科技有权在没有通知的情况下对本手册上的内容进行更新，恕不另行通知。为了得到最新版本的信息，请尊敬的用户定时访问灵眸科技官方网站或者与灵眸科技工作人员联系。感谢您的包容与支持！
销售与服务网络
广州灵眸科技有限公司
地址：广州市黄埔区东明三路18号智造谷创新园D栋7层703
邮编：510530
网址：https://www.easy-eai.com
电话：18617322361（刘先生）
请您用以上方式联系我们，我们会为您安排样机现场演示，感谢您对我公司产品的关注！
声明：本文内容及配图由入驻作者撰写或者入驻合作网站授权转载。文章观点仅代表作者本人，不代表电子发烧友网立场。文章及其配图仅供工程师学习之用，如有内容侵权或者其他违规问题，请联系本站处理。
举报投诉
- 相关推荐
- 热点推荐
- 核心板
- EASY-EAI灵眸科技
- AIoT
- rk3576
-
全场景适配：RK3576核心板的行业应用价值图鉴2025-10-31 702
-
【作品合集】米尔RK3576开发板测评2025-09-11 36751
-
【作品合集】灵眸科技EASY EAI Orin Nano（RK3576）开发板测评2025-09-09 31588
-
瑞芯微RK3576与RK3576S有什么区别，性能参数配置与型号差异解析2025-08-14 1766
-
迅为RK3576核心板高算力AI开发板开启智能应用新时代2025-06-10 1425
-
迅为RK3576开发板高算力低成本工业级核心板卡开发平台2025-06-09 1444
-
适配多种系统，米尔瑞芯微RK3576核心板解锁多样化应用2025-05-23 6588
-
RK3576核心板外部电路最小系统原理图2025-02-25 1734
-
迅为RK3576开发板核心板与底板接口硬件介绍2025-01-14 2354
-
米尔RK3576开发板特惠活动！2024-11-12 1984
-
新品体验 | RK3576开发板2024-11-01 2789
-
RK3576核心板与嵌入式主板通用平台介绍2024-08-26 2583
-
飞凌嵌入式RK3576核心板的四大优势详解2024-06-28 3165
-
贝启RK3576核心板/开发板2024-04-29 4317
全部0条评论
快来发表一下你的评论吧 !
