【开源硬件】上班摸鱼敲木鱼——小安派R2测评

项目名：电子木鱼
模组支持：安信可小安派-Eyes-R2
作者：安信可论坛用户Niliyoah

1开箱

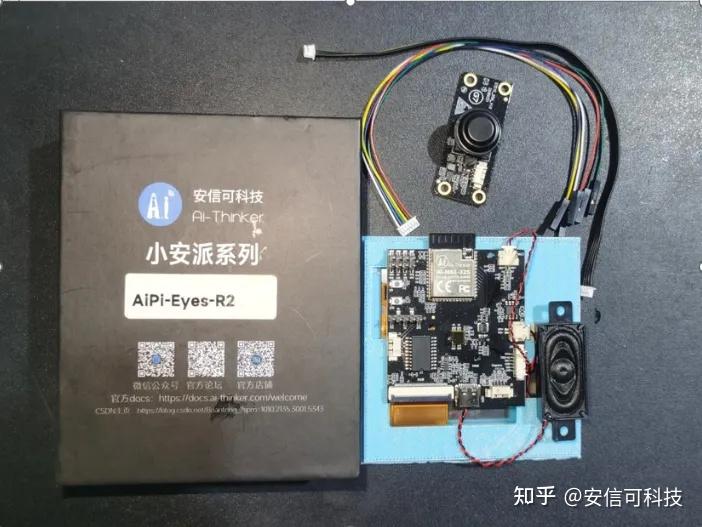

小安派-Eyes-R2开箱：共有如下配件：480*480触摸屏；为Ai-M61-32S设计的4寸RGB显示屏驱动板；扬声器；麦克风咪头；USB摄像头；摄像头连接线；IO连接线

480*480触摸屏

4寸RGB显示屏驱动板

扬声器

麦克风咪头

USB摄像头

摄像头连接线

IO连接线

为避免短路，3D打印了一个外壳固定元件，正面图如下:

背面图片：

RGB显示屏驱动板特写，该板子搭载的Ai-M61-32S 模组支持WiFi6、BLE5.3。具有丰富的外设接口，具体包括 DVP、MJPEG、Dispaly、AudioCodec、USB2.0、SDU、以太网 (EMAC)、SD/MMC(SDH)、SPI、UART、I2C、I2S、PWM、GPDAC、GPADC、ACOMP 和 GPIO 等。集成了SPI屏幕接口，DVP摄像头接口，预留TF卡座，并且引出USB接口，可接入USB摄像头。

开箱结束！

2环境搭建

参照安信可论坛大佬@起个名字好难啊
零基础搭建小安派Windows 开发环境零基础搭建小安派Windows 开发环境 - 小安派&M61环境搭建、编译烧录教程 - 物联网开发者社区-安信可论坛 - Powered by Discuz!

Git拉取源码

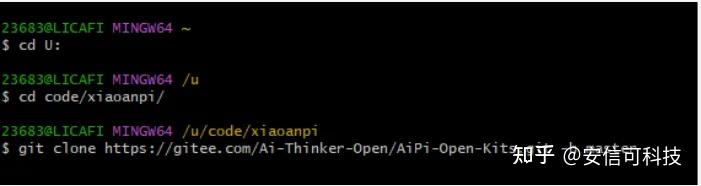

git clone https://gitee.com/Ai-Thinker-Open/AiPi-Open-Kits.git -b mastercd AiPi-Open-Kits/
git submodule init
git submodule updatecd aithinker_Ai-M6X_SDK/
git submodule init
git submodule update
aithinker_Ai-M6X_SDKtoolchain_gcc_t-head_windowsbin
aithinker_Ai-M6X_SDKtoolsmake
aithinker_Ai-M6X_SDKtoolsninja



编译工具链

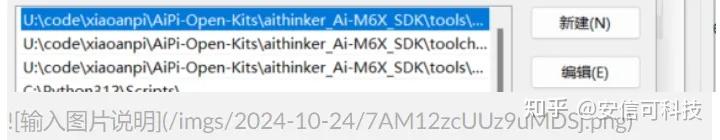

导入工具链toolchain、tools

验证配置是够成功

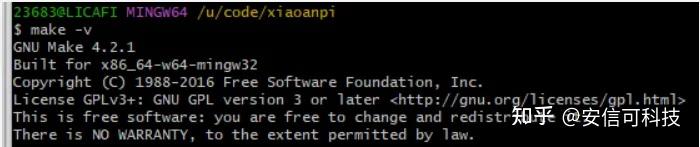

make -v
riscv64-unknown-elf-gcc -v



编译、烧录程序

vscode终端进入src进行编译



make BL_SDK_BASE=U:/code/xiaoanpi/AiPi-Open-Kits/aithinker_Ai-M6X_SDK

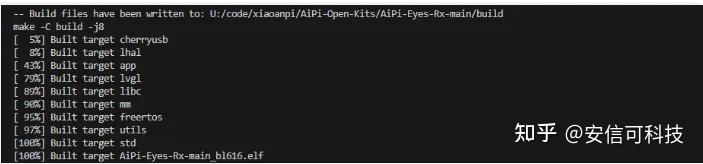

编译成功，开始烧录

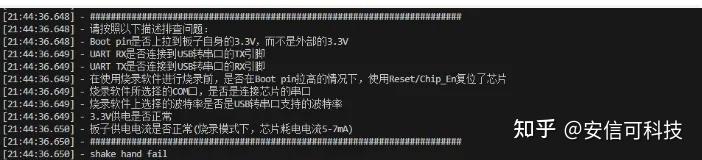

烧录过程有点小问题，记得检查接线



make flash COMX=COM5 BL_SDK_BASE=U:/code/xiaoanpi/AiPi-Open-Kits/aithinker_Ai-M6X_SDK



烧录成功！！

3DIY项目——上班敲木鱼

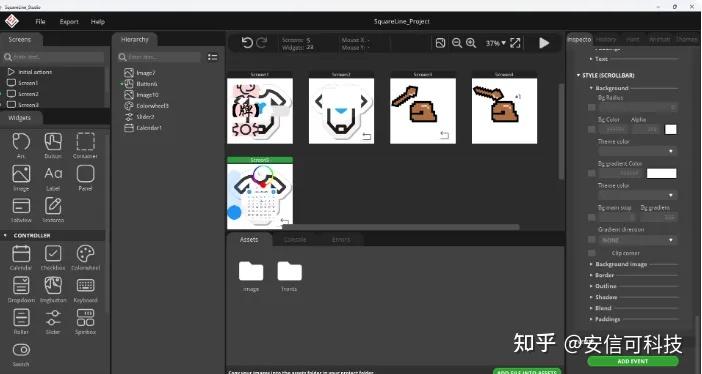

使用squarelline_studio编辑UI并导出。


导出目录如下图：


将导出的 UI 源码添加到项目工程中，主程序中添加 ui.h 头文件，调用一次 ui_init() 函数即可。

为方便工程管理，可使用宏定义


建立 xx_conf.h文件进行管理


如图所示，板载性能测试 LV_USE_DEMO_BENCHMARK，图形界面 UI。

部分代码

需要使用LVGL知识，详情参见百问网Introduction （介绍） — 百问网LVGL中文教程文档 文档



void
ui_Screen1_screen_init
(
void
)
{ ui_Screen1 = lv_obj_create(
NULL
); lv_obj_clear_flag(ui_Screen1, LV_OBJ_FLAG_SCROLLABLE);
/// Flags
lv_obj_set_style_bg_color(ui_Screen1, lv_color_hex(
0xFFFFFF
), LV_PART_SCROLLBAR | LV_STATE_DEFAULT); lv_obj_set_style_bg_opa(ui_Screen1,
255
, LV_PART_SCROLLBAR | LV_STATE_DEFAULT); ui_Image2 = lv_img_create(ui_Screen1); lv_img_set_src(ui_Image2, &ui_img_image_a8890b2ae7c89994_png); lv_obj_set_width(ui_Image2, LV_SIZE_CONTENT);
/// 1
lv_obj_set_height(ui_Image2, LV_SIZE_CONTENT);
/// 1
lv_obj_set_x(ui_Image2,
3
); lv_obj_set_y(ui_Image2,
-3
); lv_obj_set_align(ui_Image2, LV_ALIGN_CENTER); lv_obj_add_flag(ui_Image2, LV_OBJ_FLAG_ADV_HITTEST);
/// Flags
lv_obj_clear_flag(ui_Image2, LV_OBJ_FLAG_SCROLLABLE);
/// Flags
lv_obj_set_style_bg_color(ui_Image2, lv_color_hex(
0xFFFFFF
), LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_opa(ui_Image2,
255
, LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_grad_color(ui_Image2, lv_color_hex(
0x000000
), LV_PART_MAIN | LV_STATE_DEFAULT); ui_Button1 = lv_btn_create(ui_Screen1); lv_obj_set_width(ui_Button1, lv_pct(
40
)); lv_obj_set_height(ui_Button1, lv_pct(
20
)); lv_obj_set_x(ui_Button1,
-104
); lv_obj_set_y(ui_Button1,
-146
); lv_obj_set_align(ui_Button1, LV_ALIGN_CENTER); lv_obj_add_flag(ui_Button1, LV_OBJ_FLAG_SCROLL_ON_FOCUS);
/// Flags
lv_obj_clear_flag(ui_Button1, LV_OBJ_FLAG_SCROLLABLE);
/// Flags
lv_obj_set_style_bg_color(ui_Button1, lv_color_hex(
0xFFD6D5
), LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_opa(ui_Button1,
255
, LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_grad_color(ui_Button1, lv_color_hex(
0xFFFFFF
), LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_img_src(ui_Button1, &ui_img_725565046, LV_PART_MAIN | LV_STATE_DEFAULT); ui_Button2 = lv_btn_create(ui_Screen1); lv_obj_set_width(ui_Button2, lv_pct(
40
)); lv_obj_set_height(ui_Button2, lv_pct(
20
)); lv_obj_set_x(ui_Button2,
-105
); lv_obj_set_y(ui_Button2,
-4
); lv_obj_set_align(ui_Button2, LV_ALIGN_CENTER); lv_obj_add_flag(ui_Button2, LV_OBJ_FLAG_SCROLL_ON_FOCUS);
/// Flags
lv_obj_clear_flag(ui_Button2, LV_OBJ_FLAG_SCROLLABLE);
/// Flags
lv_obj_set_style_bg_color(ui_Button2, lv_color_hex(
0xFFD6D5
), LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_opa(ui_Button2,
255
, LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_img_src(ui_Button2, &ui_img_958301348, LV_PART_MAIN | LV_STATE_DEFAULT); ui_object_set_themeable_style_property(ui_Button2, LV_PART_MAIN | LV_STATE_DEFAULT, LV_STYLE_BG_IMG_RECOLOR, _ui_theme_color_aaa); ui_object_set_themeable_style_property(ui_Button2, LV_PART_MAIN | LV_STATE_DEFAULT, LV_STYLE_BG_IMG_RECOLOR_OPA, _ui_theme_alpha_aaa); ui_Button3 = lv_btn_create(ui_Screen1); lv_obj_set_width(ui_Button3, lv_pct(
40
)); lv_obj_set_height(ui_Button3, lv_pct(
20
)); lv_obj_set_x(ui_Button3,
-106
); lv_obj_set_y(ui_Button3,
135
); lv_obj_set_align(ui_Button3, LV_ALIGN_CENTER); lv_obj_add_flag(ui_Button3, LV_OBJ_FLAG_SCROLL_ON_FOCUS);
/// Flags
lv_obj_clear_flag(ui_Button3, LV_OBJ_FLAG_SCROLLABLE);
/// Flags
lv_obj_set_style_bg_color(ui_Button3, lv_color_hex(
0xFDD7D7
), LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_opa(ui_Button3,
255
, LV_PART_MAIN | LV_STATE_DEFAULT); lv_obj_set_style_bg_img_src(ui_Button3, &ui_img_1685869645, LV_PART_MAIN | LV_STATE_DEFAULT); ui_Switch1 = lv_switch_create(ui_Screen1); lv_obj_set_width(ui_Switch1,
204
); lv_obj_set_height(ui_Switch1,
81
); lv_obj_set_x(ui_Switch1,
118
); lv_obj_set_y(ui_Switch1,
-2
); lv_obj_set_align(ui_Switch1, LV_ALIGN_CENTER); lv_obj_add_event_cb(ui_Button1, ui_event_Button1, LV_EVENT_ALL,
NULL
); lv_obj_add_event_cb(ui_Button2, ui_event_Button2, LV_EVENT_ALL,
NULL
); lv_obj_add_event_cb(ui_Button3, ui_event_Button3, LV_EVENT_ALL,
NULL
); lv_obj_add_event_cb(ui_Switch1, ui_event_Switch1, LV_EVENT_ALL,
NULL
); }



编译烧录

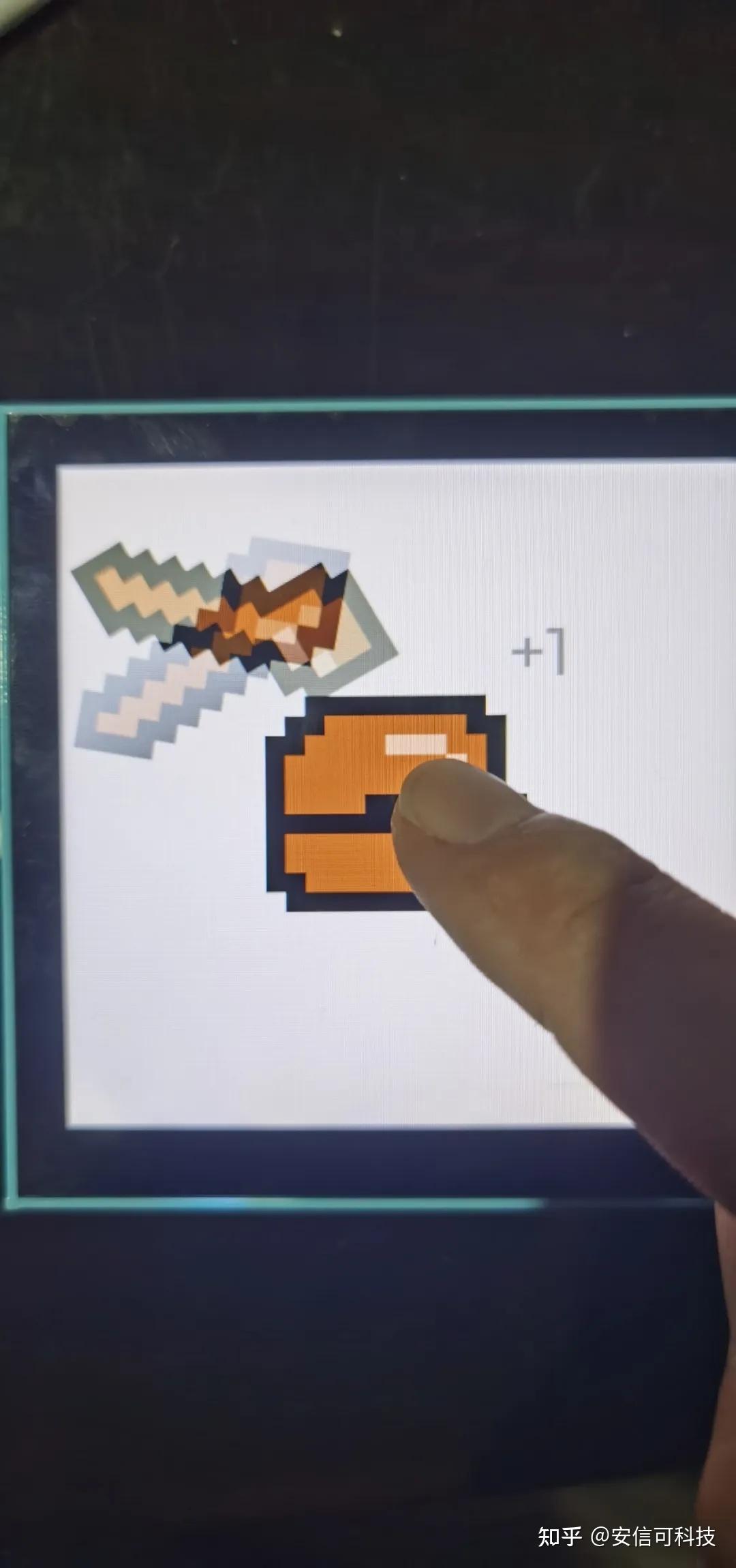

启动！！

4不足与建议

真心觉得板子集成度太低，需要使用ttl下载，也没有led灯供调试使用，但是性能还是挺强大~
