High Speed Voltage Mode Pulse Width Modulator 数据表

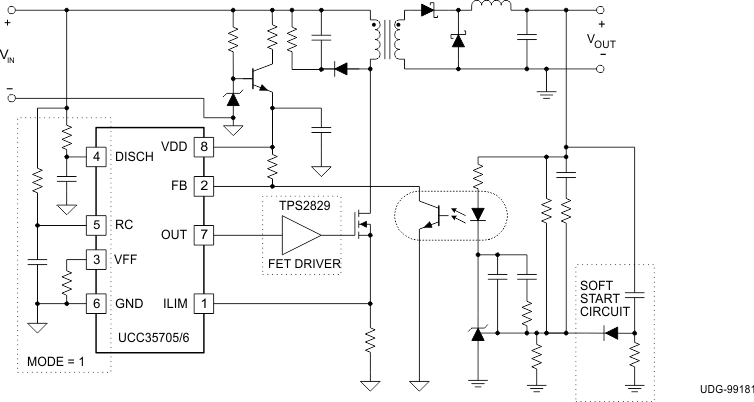

UCC35705和UCC35706器件是8引脚电压模式初级侧控制器，具有快速过流保护。这些器件用作高性能隔离和非隔离电源转换器的核心高速构建模块。
UCC35705 /UCC35706器件具有高速振荡器，具有集成的前馈补偿功能，可提高转换器性能。输出延迟时间为25 ns的典型电流检测可以快速响应过载情况。该IC还提供精确的可编程最大占空比钳位，以增强保护，也可以禁止振荡器以最大可能的占空比运行。
提供两个UVLO选项。具有较低导通电压的UCC35705适用于DC-DC转换器，而UCC35706更高的导通电压和更宽的UVLO范围更适合离线应用。
UCC35705 /UCC35706系列采用8引脚MSOP（DGK），SOIC（D）和PDIP（P）封装。
| Topology |
| Control Method |
| Vin (Min) (V) |
| Vin (Max) (V) |
| Frequency (Max) (kHz) |
| UVLO Thresholds On/Off (V) |
| Duty Cycle (Max) (%) |
| Gate Drive (Typ) (A) |
| Features |
| Rating |
| Operating Temperature Range (C) |
| Pin/Package |
| UCC25706 | UCC25701 | UCC25702 | UCC25705 |
|---|---|---|---|
| Boost Flyback Forward | Boost Flyback Forward | Boost Flyback Forward | Boost Flyback Forward |
| Feedforward Voltage | Feedforward Voltage | Feedforward Voltage | Feedforward Voltage |
| 12 | 14 | 9.6 | 8.8 |
| 400 | 15 | 15 | 400 |
| 4000 | 700 | 700 | 4000 |
| 12/8 | 13/9 | 9.9/9.1 | 8.8/8.2 |
| 93 | 99 | 99 | 93 |
| 0.02 | 1 | 1 | 0.02 |
| Multi-topology | Adjustable Switching Frequency Current Limiting Multi-topology Programmable Max Duty Cycle Soft Start Synchronization Pin | Adjustable Switching Frequency Current Limiting Multi-topology Programmable Max Duty Cycle Soft Start Synchronization Pin | Multi-topology |
| Catalog | Catalog | Catalog | Catalog |
| -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| 8PDIP 8SOIC 8VSSOP | 14PDIP 14SOIC 14TSSOP | 14PDIP 14SOIC 14TSSOP | 8PDIP 8SOIC 8VSSOP |
