THS4211, THS4215: Low-Distortion High-Speed Voltage Feedback Amplifier 数据表
THS4211和THS4215是高压摆率，单位增益稳定的电压反馈放大器，设计工作电压低至5 V且高至15 V. THS4215具有与THS4211相同的性能，并增加了断电功能。高压摆率，宽带宽，低失真和单位增益稳定性的结合使THS4211和THS4215高性能器件能够满足多种交流规范。

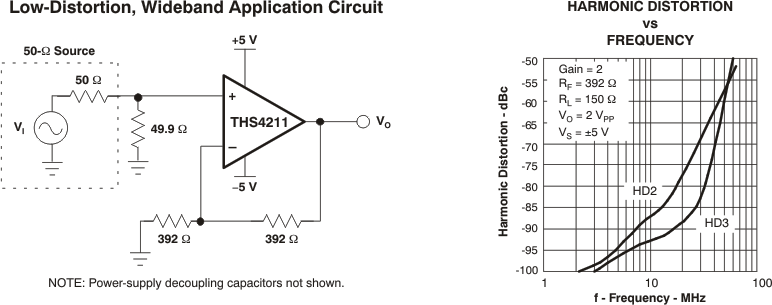

使用THS4211的设计人员可获得更高的动态范围更宽的频带，没有失代偿放大器的稳定性问题。这些器件采用SOIC，采用PowerPAD的MSOP和采用PowerPAD封装的无引线MSOP。
所有商标是他们各自所有者的财产。
| Architecture |
| Number of Channels (#) |
| Total Supply Voltage (Min) (+5V=5, +/-5V=10) |
| Total Supply Voltage (Max) (+5V=5, +/-5V=10) |
| BW @ Acl (MHz) |
| Acl, min spec gain (V/V) |
| Slew Rate (Typ) (V/us) |
| Vn at Flatband (Typ) (nV/rtHz) |
| Vn at 1kHz (Typ) (nV/rtHz) |
| Iq per channel (Typ) (mA) |
| Vos (Offset Voltage @ 25C) (Max) (mV) |
| Rail-to-Rail |
| Features |
| Rating |
| Operating Temperature Range (C) |
| Package Group |
| Package Size: mm2:W x L (PKG) |
| CMRR (Typ) (dB) |
| Input Bias Current (Max) (pA) |
| Offset Drift (Typ) (uV/C) |
| GBW (Typ) (MHz) |
| Output Current (Typ) (mA) |
| 2nd Harmonic (dBc) |
| 3rd Harmonic (dBc) |
| @ MHz |
| THS4211 | THS4215 |
|---|---|
| Bipolar Voltage FB | Bipolar Voltage FB |
| 1 | 1 |
| 5 | 5 |
| 15 | 15 |
| 1000 | 1000 |
| 1 | 1 |
| 970 | 970 |
| 7 | 7 |
| 7 | 7 |
| 19 | 19 |
| 12 | 12 |
| No | No |
| N/A | Shutdown |
| Catalog | Catalog |
| -40 to 85 | -40 to 85 |
| MSOP-PowerPAD SOIC SON VSSOP | MSOP-PowerPAD SOIC SON VSSOP |
| 8MSOP-PowerPAD: 15 mm2: 4.9 x 3(MSOP-PowerPAD) 8SOIC: 29 mm2: 6 x 4.9(SOIC) See datasheet (SON) 8VSSOP: 15 mm2: 4.9 x 3(VSSOP) | 8MSOP-PowerPAD: 15 mm2: 4.9 x 3(MSOP-PowerPAD) 8SOIC: 29 mm2: 6 x 4.9(SOIC) See datasheet (SON) 8VSSOP: 15 mm2: 4.9 x 3(VSSOP) |
| 56 | 56 |
| 15000000 | 15000000 |
| 40 | 40 |
| 1000 | 1000 |
| 170 | 170 |
| 78 | 78 |
| 68 | 68 |
| 30 | 30 |
